TEPCO's Fukushima Daiichi Nuclear Power Station accident

2016年3月7日更新 Update

Status

The Great East Japan Earthquake occurred on 11 March, 2011. A massive earthquake triggered tsunami which damaged the coastal areas of the Tohoku District, including Fukushima Prefecture.

Damage at the Power Station

Earthquake Damage

  • The Earthquake triggered the emergency stop of the operating reactors(1 - 3)
  • Emergency power supplies were triggered, starting fuel cooling operations for reactors 1-6

Tsunami Damage

  • Tsunami caused flooding of the emergency power supplies including batteries, which lead to a loss of power for reactors 1-5
  • Fuel melted in reactors 1-3 and radioactive substances were released into the air
  • Hydrogen explosions caused damage to the buildings containing reactors 1, 3, and 4.
  • Cooling function was lost for the spent fuel pools of reactors 1-6.

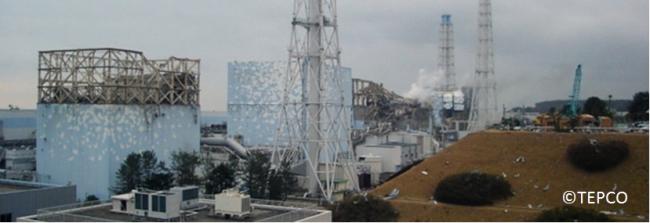

Photo:Power Station struck by tsunami
Power Station struck by tsunami

Damage Response

  • Fuel in Reactors 1-3 were cooled using water injection, and reached a stable condition
  • Reactor 5 resumed cooling operations using the emergency power facilities of Reactor 6.
  • Cooling of the spent fuel pools was resumed using pumping vehicles and other temporary equipment.

F1NPS - Situation after Tsunami Disaster

Reactor
No.
Operational
Condition
Reactor fuel
(Unit:rod)
Fuel in Pool
(Unit:rod)
ACPower
Source
DC Power
Source
Emergency AC
Power Source
1Operating400392UnusableUnusableUnusable
2Operating548615UnusableUnusableUnusable
3Operating548566UnusablePartially
usable
Unusable
4Suspended01,535UnusableUnusableUnusable
5Suspended548994UnusableUsableUnusable
6Suspended764940UnusableUsableUsable

Reactors 1-6 after the accident

Image:Reactors 1-6 after the accident

Current situation of reactors

Decommissioning operations are currently underway for reactors 1-6 at the F1NPS.

Reactor temperature

  • Roughly 300m3 of cooling water is being injected into the reactors every day
  • Reactor temperature is stable at below 50℃ (As of October, 2015)

Image:Reactor temperature

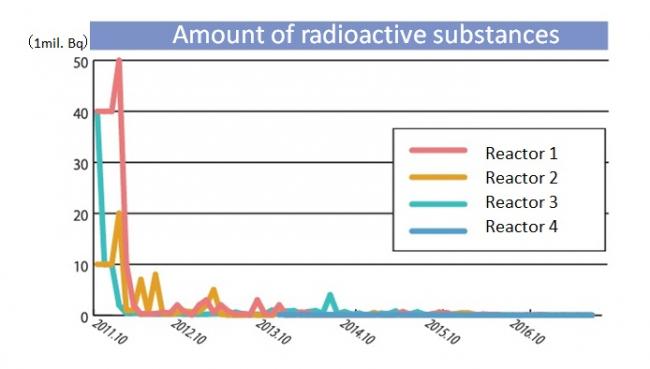

Amount of radioactive substances

  • Concentrations of radioactive substances are being monitored and no signs of recriticality have been observed(As of October, 2015)

Image:Amount of radioactive substances


Current Situation(2015.10)of Reactors 1-6

Current Situation(2015.10)of Reactors 1-6

Marine monitoring

TEPCO is conducting marine monitoring in order to confirm the impact on the environment caused by the radioactive substances released from the F1NPS. There are also many measures in place for the processing and reduction of contaminated water.

TEPCO is making efforts to confirm the environmental impact of radioactive substances released from the F1NPS

  • Radiation levels inside and outside the power station are being measured.
  • In spite of the leak of contaminated water, no significant increase in radiation levels has been observed outside the port.
  • Radiation levels of sea water are well below standards for drinking water set by WHO.

Image : Marine monitoring 1

Image : Marine monitoring 2

*Total beta activity includes naturally occurring radionuclides such as K-40.
